Set up semantic search (RAG)

Set up a RAG system using the Pinecone integration

In this guide we will set up a Humanloop Pinecone tool and use it to enrich a prompt with the relevant context from a data source of documents. This tool combines Pinecone’s semantic search with OpenAI’s embedding models.

Prerequisites

  • A Humanloop account - you can create one by going to our sign up page.
  • A Pinecone account - you can create one by going to their sign up page.
  • Python installed - you can download and install Python by following the steps on the Python download page.

If you have an existing Pinecone index that was created using one of OpenAI’s embedding models, you can skip to section: Setup Humanloop

Set up Pinecone

Install the Pinecone SDK

If you already have the Pinecone SDK installed, skip to the next section.

1

Install the Pinecone Python SDK in your terminal:

$pip install pinecone-client
2

Start a Python interpreter:

$python
3

Go to the Pinecone console API Keys tab and create an API key - copy the key value and the environment.

4

Test your Pinecone API key and environment by initialising the SDK

1>>> import pinecone
2>>> pinecone.init(api_key="<YOUR API KEY>", environment="<YOUR ENV>")

Create a Pinecone index

Now we’ll initialise a Pinecone index, which is where we’ll store our vector embeddings. We will be using OpenAI’s ada model to create vectors to save to Pinecone, which has an output dimension of 1536 that we need to specify upfront when creating the index:

1import pinecone
2
3# Initialise the SDK
4pinecone.init(api_key="<YOUR API KEY>", environment="<YOUR ENV>")
5
6# Create index
7# We can reference the dimension of the embeddings on OpenAI
8# https://platform.openai.com/docs/guides/embeddings/what-are-embeddings
9pinecone.create_index('humanloop-demo', dimension=1536)
10
11# Connect to the index
12index = pinecone.Index('humanloop-demo')

Preprocess the data

Now that you have a Pinecone index, we need some data to put in it. In this section we’ll pre-process some data ready for embedding and storing to the index in the next section.

We’ll use the awesome Hugging Face datasets to source a demo dataset (following the Pinecone quick-start guide). In practice you will customise this step to your own use case.

1

First install Hugging Face datasets using pip:

Shell
1pip install datasets
2

Next download the Quora dataset:

1from datasets import load_dataset
2
3dataset = load_dataset('quora', split='train')
3

Now we can preview the dataset - it contains ~400K pairs of natural language questions from Quora:

1print(dataset[:5])
{'questions': [{'id': [1, 2],
   'text': ['What is the step by step guide to invest in share market in india?',
    'What is the step by step guide to invest in share market?']},
  {'id': [3, 4],
   'text': ['What is the story of Kohinoor (Koh-i-Noor) Diamond?',
    'What would happen if the Indian government stole the Kohinoor (Koh-i-Noor) diamond back?']},
  {'id': [5, 6],
   'text': ['How can I increase the speed of my internet connection while using a VPN?',
    'How can Internet speed be increased by hacking through DNS?']},
  {'id': [7, 8],
   'text': ['Why am I mentally very lonely? How can I solve it?',
    'Find the remainder when [math]23^{24}[/math] is divided by 24,23?']},
  {'id': [9, 10],
   'text': ['Which one dissolve in water quikly sugar, salt, methane and carbon di oxide?',
    'Which fish would survive in salt water?']}],
 'is_duplicate': [False, False, False, False, False]}
4

Extract the text from the questions into a single list ready for embedding:

Python
1questions = []
2
3for record in dataset['questions']:
4    questions.extend(record['text'])
5
6# remove duplicates
7questions = list(set(questions))
8print('\n'.join(questions[:5]))
9print(f"Number of questions: {len(questions)}")
I am currently training at IBM in .NET. What are the probable locations IBM has to offer for this domain?
Can someone suggest some songs like this one?
How do sodium bicarbonate and HCL react?
Who inspires you most and why?

Populate Pinecone

Now that you have a Pinecone index and a dataset of text chunks, we can populate the index with embeddings before moving on to Humanloop. We’ll use one of OpenAI’s embedding models to create the vectors for storage.

Install and initialise Open AI SDK

If you already have your OpenAI key and the SDK installed, skip to the next section.

1

Install the OpenAI SDK using pip:

Shell
1$ pip install openai
2

Initialise the SDK (you’ll need an OpenAI key from your OpenAI account)

1import openai
2
3openai.api_key = "<YOUR OPENAI API KEY>"

Populate the index

If you already have a Pinecone index set up, skip to the next section.

1

Embed the questions and store them in Pinecone with the corresponding text as metadata:

Python
1# For the sake of the demo we just use a small subset of the data
2embed_questions = questions[:100]
3
4for i, question in enumerate(embed_questions):
5    # Embed the question
6    embedding = client.embeddings.create(input=question, model="text-embedding-ada-002").data[0].embedding
7
8    # Upsert to Pinecone - expects tuples of (id, vector, metadata to associate to vector)
9    index.upsert([(str(i), embedding, {"text": question})])
10
11# check number of records in the index
12index.describe_index_stats()
2

You can now try out the semantic search with a test question:

1test_query = "What is the first law of Thermodynamics?"
2
3# create the query vector
4test_query = openai.Embedding.create(
5      input=test_query, model="text-embedding-ada-002"
6    ).data[0].embedding
7
8# run the query
9result = index.query(test_query, top_k=3, include_metadata=True)
10print(result)

You should see semantically similar questions retrieved with the corresponding similarity scores:

{'matches': [{'id': '72',
              'metadata': {'text': 'Is kinetic energy gained when it is moving '
                                   'at a constant speed or when it is '
                                   'accelerating?'},
              'score': 0.792976439,
              'values': []},
             {'id': '28',
              'metadata': {'text': 'Is energy in vacuum real? How do we know '
                                   'that this energy that can be borrowed and '
                                   'returned immediately is real if virtual '
                                   "particles didn't exist then?"},
              'score': 0.787870169,
              'values': []},
             {'id': '425',
              'metadata': {'text': 'What is the most intriguing scientific '
                                   'paradox?'},
              'score': 0.78692925,
              'values': []}],
 'namespace': ''}

Set up Humanloop

Configure Pinecone

You’re now ready to configure a Pinecone tool in Humanloop:

1

Create a New Tools

From the Humanloop dashboard or the sidebar, click ‘New File’ and select Tool.

2

Select Pinecone Search

Select the Pinecone Search option

3

Configure Pinecone and OpenAI

These should be the same values you used when setting up your Pinecone index in the previous sections. All these values are editable later.

  1. For Pinecone: populate values for Name (use quora_search), pinecone_key, pinecone_environment, pinecone_index (note: we named our index humanloop-demo). The name will be used to create the signature for the tool that you will use in your prompt templates in the next section.
  2. For OpenAI: populate the openai_key and openai_model (note: we used the text-embedding-ada-002 model above)
4

Save the tool

By selecting Save.

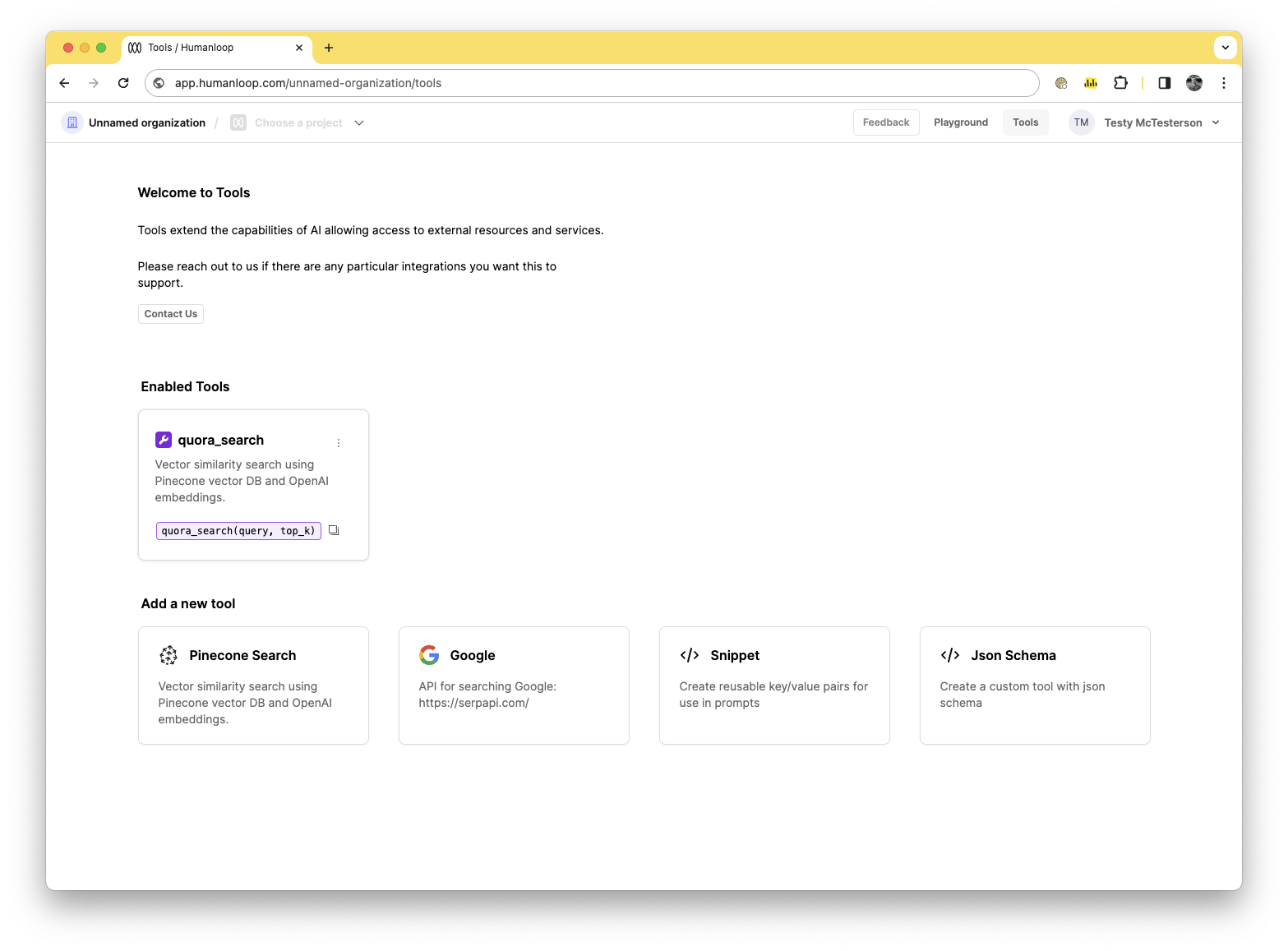

An active tool for quora_search will now appear on the tools tab and you’re ready to use it within a prompt template.

Enhance your Prompt template

Now that we have a Pinecone tool configured we can use this to pull relevant context into your prompts.

This is an effective way to enrich your LLM applications with knowledge from your own internal documents and also help fix hallucinations.

1

Navigate to the Editor of your Prompt

2

Copy and paste the following text into the Prompt template box:

You are a helpful intern.
Very succinctly summarise the types of questions people are asking on Quora about: {{topic}}
Reference the following search results of Quora questions {{quora_search(topic, 10)}}:
Summary:
3

On the right hand side under Completions, enter the following three examples of topics: Google, Physics and Exercise.

4

Press the Run all button bottom right (or use the keyboard shortcut Command + Enter).

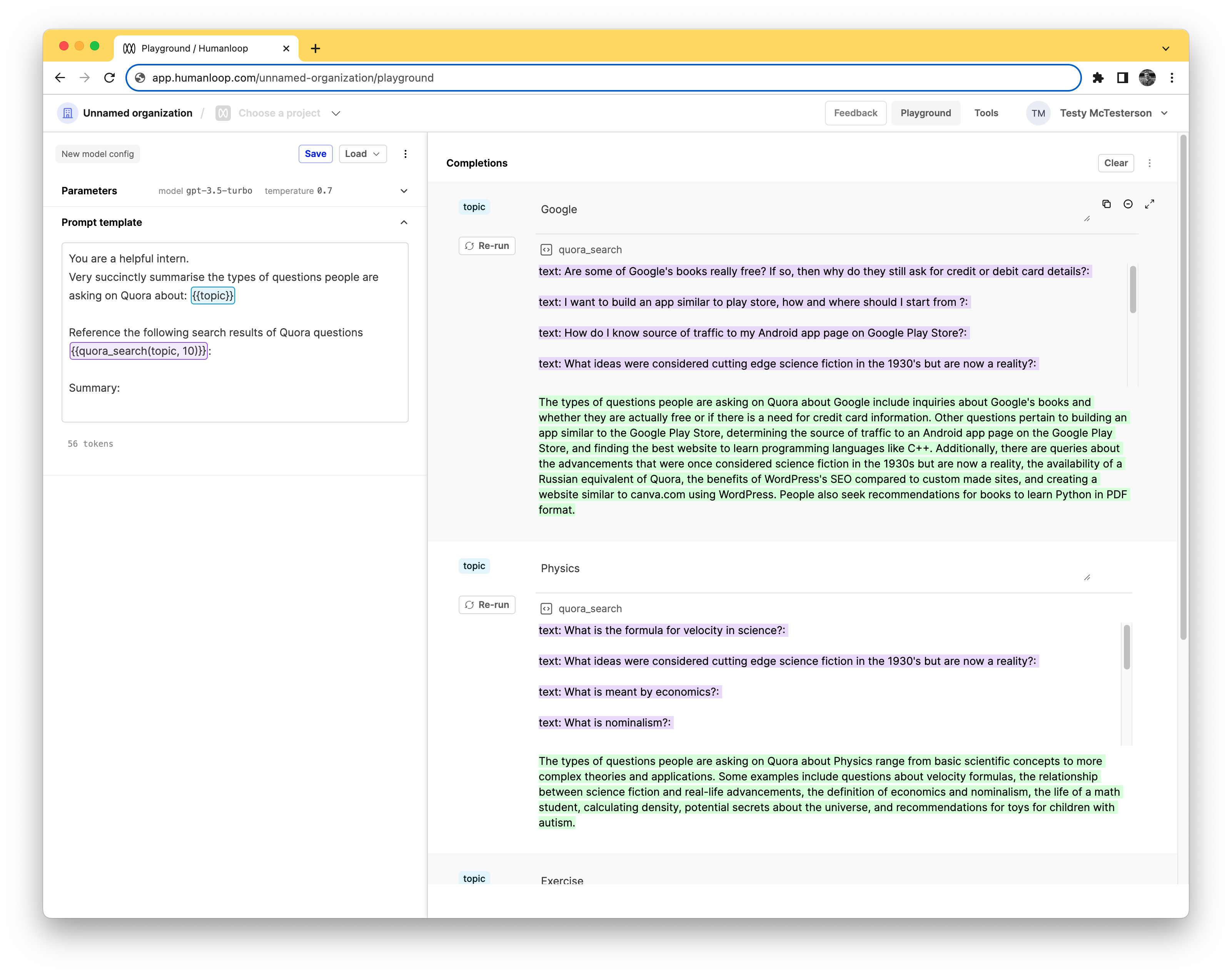

On the right hand side the results from calling the Pinecone tool for the specific topic will be shown highlighted in purple and the final summary provided by the LLM that uses these results will be highlighted in green.

Using tools in the prompt template

Each active tool in your organisation will have a unique signature that you can use to specify the tool within a prompt template.

You can find the signature in the pink box on each tool card on the Tools page.

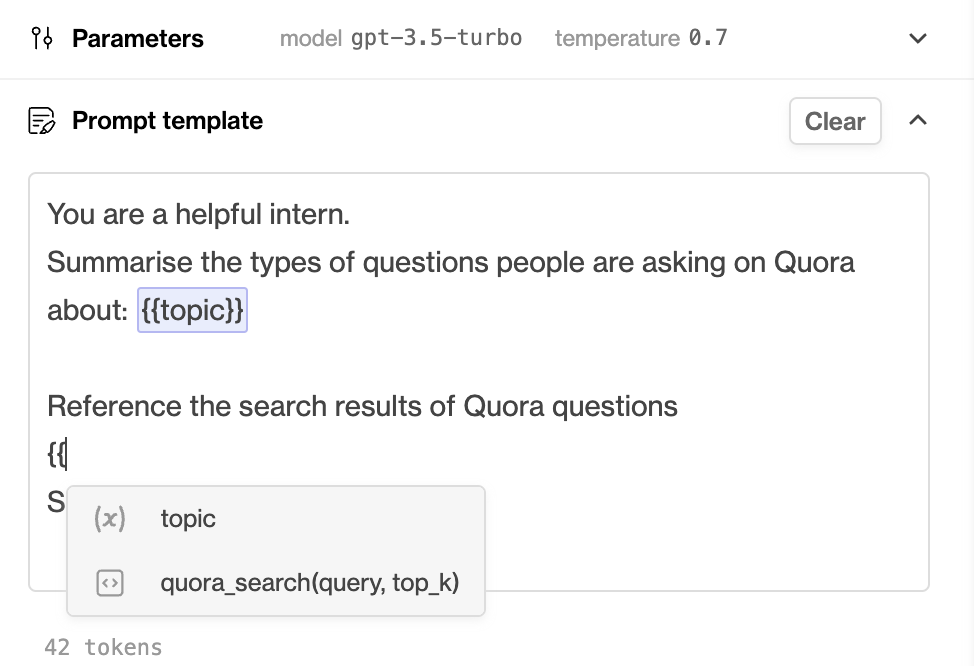

You can also use double curly brackets - {{ - within the prompt template in the Prompt Editor to see a dropdown of available tools.

In the case of Pinecone tools, the signature takes two positional arguments: query(the query text passed to Pinecone) and top_k(the number of similar chunks to retrieve from Pinecone for the query).
